TORNADO-P3x are high-performance floating-point DSP systems for PCI-bus and standalone applications. TORNADO-P3x architecture has been optimized for high-performance on-board DSP and in-parallel host PCI-to-DSP communication.

key features:

TMS320VC33 150MFLOPS 32-bit high performance floating-point DSP
up to 512Kx32  SRAM
up to 1Mx8  of plug-in FLASH/EPROM for stand-alone operation
on-board Shared Bus (SB) architecture with PCI and DSP SB masters
high-performance PCI-bus host I/F with multi-channel PCI-to-DSP communication:
direct PCI-to-SB access
data transfer between PCI and DSP via bi-directional FIFO with PCI-mastering
multi-channel MAILBOXES for mutual interrupts
multi-source DSP external interrupts
DSP either starts without boot or boots from FLASH
TORNADO compatible modular construction
PIOX/PIOX-16 and SIOX rev.B/C sites for AD/DA/DIO daughter-card modules and application specific I/O coprocessors
multiprocessor DSP expansion
watch-dog timer
stand-alone operation
on-board ECC JTAG emulator running under TI Code Composer Debugger tools
build-in device serial codes
half-size PCI board
supported by TORNADO Software Development Kit (TSDK) and industry-standard DSP software tools

applications:

DSP accelerators with extensive PCI-to-DSP communication
vocoders and speech processing
fax/modems
computer telephony
audio
image processing and tomography
acoustics
radar
industrial
instrumentation

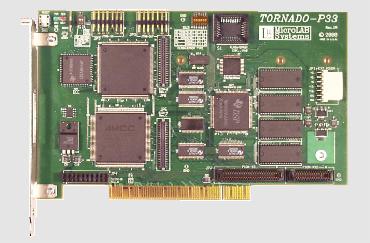

TORNADO-P33 High-Performance Floating-point DSP System for PCI

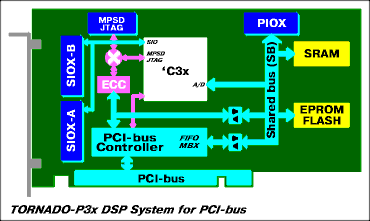

TORNADO-TP3x DSP Systems Architecture

TORNADO-P3x DSP Systems Summary

p/n DSP max
SRAM		 max
EPROM/
FLASH		 I/O Expansion embedded
JTAG
emulator		 PCI-bus
mastering		 Stand-
alone operation		 PDFICON.GIF (224 bytes)
TORNADO-P33 TMS320VC33
150MFLOPS		 512Kx32 1Mx8
(plug-in)		 PIOX

SIOX rev.B/C(2)		 ECC WB01372_1.gif (406 bytes) WB01372_1.gif (406 bytes) pdfsmall.gif (153 bytes)

Utility software and on-line manuals:

TORNADO-P3x Software Utilities and On-line Documentation
TORNADO Software Development Kit (TSDK) for host Windows Applications

Other documentation:

TORNADO PC plug-in DSP Systems Summary Datasheet (Rus) (Eng)
Software development tools for TORNADO/MIRAGE (Rus)
Application software tools for TORNADO (Rus)
