TORNADO-4x DSP Systems

TI 3rd partyMicroLAB Systems is a member of Freescale PowerPC Alliance ProgramPICMG Open Modular Computing Standards



MicroLAB Systems Home page Products directory Product Pricing News MicroLAB Systems Press & Publications Download Area  Contents Directory for MicroLAB Systems WEB-page Contact Information About MicroLAB Systems










TORNADO-4x are ISA-bus PC plug-in high-performance floating-point single- and multiprocessor DSP systems and universal emulators for TI TMS320 DSP.

key features:

one or two 60MFLOPS 32-bit floating-point  TMS320C40/C44 DSP
TORNADO compatible system architecture and modular construction
a variety of multiprocessor coupling for on-board DSPs
Global Shared Bus (G-SB) architecture
..1Mx32 0ws global shared SRAM (G-SRAM)
..1Mx32 0ws local SRAM (L-SRAM)
..1Mx8 EPROM/FLASH (L-EPROM) for each DSP for stand-alone operation
optional 8Kx32 local dual-port RAM (L-DPRAM) between local buses of DSPs for arbitration-free communication via shared memory
high-speed DSP link ports for multiprocessor networking
2 DSP link ports connected between on-board DSPs
PIOX and LIOX sites for AD/DA/DIO  daughter-card modules
direct access from host ISA-bus I/F to G-SRAM and PIOX
multiprocessor DSP expansion
stand-alone operation
UECMX emulation option
emulation of external TMS320 DSP
build-in device serial codes
suported by the industry-standard DSP software tools

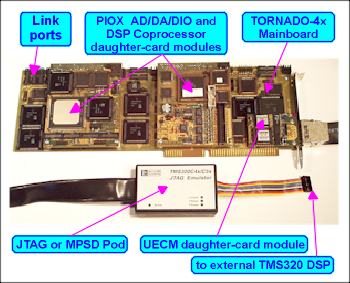

TORNADO-4x Modular Construction

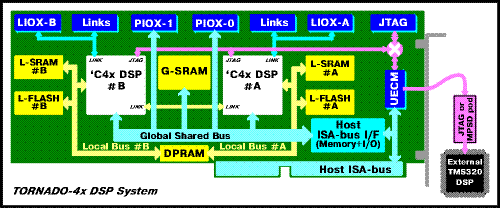

TORNADO-4x Architecture

applications:

image processing
radar
industrial and medical
instrumentation
telecommunication
audio and acoustics
education
universal emulator for TMS320 DSP

TORNADO-4x DSP Systems Summary

p/n DSP max SRAM (0ws) max L-EPROM I/O Expansion external Link ports Emulation options Host PC bus PDFICON.GIF (224 bytes)
TORNADO-44
'C44
60MFLOPS
1Mx32 G-SRAM;
1Mx32 L-SRAM
1Mx8 PIOX
LIOX
4 UECMX
+ pod
ISA pdfsmall.gif (153 bytes)
TORNADO-40D
2x'C40
120MFLOPS
1Mx32 G-SRAM;
2x1Mx32 L-SRAM
8Kx32 L-DPRAM
2x1Mx8 PIOX(2)
LIOX(2)
4+4 UECMX
+ pod
ISA pdfsmall.gif (153 bytes)

Datasheets:

TORNADO PC plug-in DSP Systems Summary Datasheet (Rus) (Eng)
Software development tools for TORNADO/MIRAGE (Rus)
Application software tools for TORNADO DSP Systems (Rus)
